Honeywell Industrial Flame Monitoring

All-in-one integrated processor and viewing head solution.

• Electronic check (no mechanical shutter) for self-check of the system.
• Independent configuration and adjustable gain settings for each sensor.
• Ten selectable flicker frequency filters for solid state UV and IR sensor (model dependent).
• New updated, fully programmable touch screen interface, with an easy menu for an enhanced user experience.
• Modbus RS485 communication for use with FlameToolsPC or FlameTools-HMI/U supports 248 loops and 32 loops, respectively.
• Advanced safety features

Download PDF Brochure

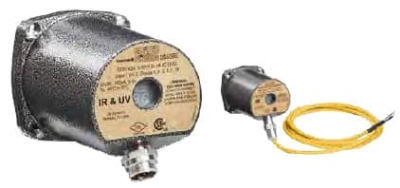

The ideal solution for monitoring all fuel types.

• Multiple models (IR/UV, IR only, and UVTron only) offer application flexibility.
• All models include electronic check (no mechanical shutter) for self-check of the system.
• Numeric two-digit display for each sensor on the back of the viewing head provides UV and IR flame count.
• Quick disconnect cable (order separately) for non-PF models. PF models provided with factory installed cable.
• Mountable in any orientation.
• Includes imbedded temperature sensor.

Download PDF Brochure

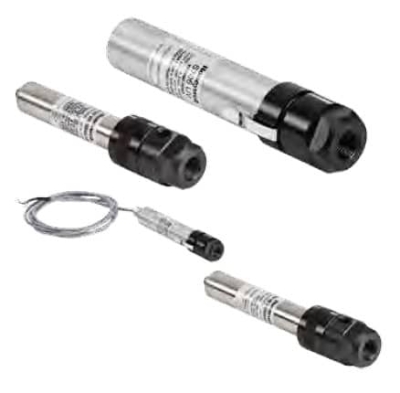

The perfect fit for single-fuel applications.

• Multiple models (IR or UVTron) offer application flexibility.
• All models include electronic check (no mechanical shutter) for self-examination of the system.
• Quick disconnect cable includes two LEDs one for selfcheck indication and one for flame on flashing proportional to flame strength

Download PDF Brochure

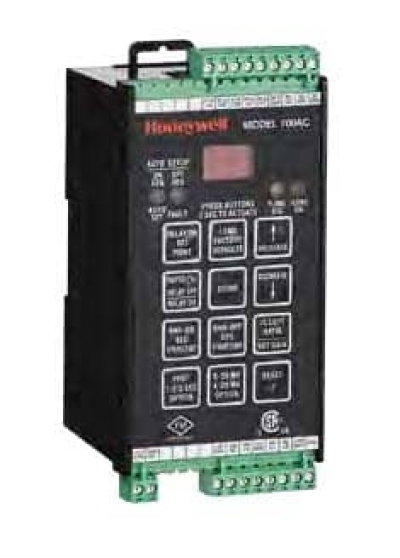

Deliver reliable monitoring, day in and day out.

• Intuitive keypad for easy setup and configuration.
• Two-digit numeric display and four LED status indicators.
• Compact DIN rail mountable design.
• Plug-in terminal connectors allow for easy installation.
• Low power consumption.
• Environmentally sealed switches.
• Modbus RS422 communication for use with FlameToolsPC or FlameTools-HMI/U supports 32 loops.

Download PDF Brochure

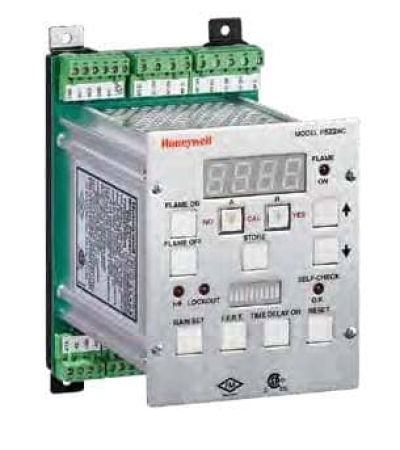

Ideal for applications where a high level of discrimination is required.

• 4-digit digital flame signal display, 4 LED status indicators and analog bar graph provide continuous system status.
• Panel mounted design and plug-in terminal connectors allow for easy installation.
• Adjustable Flame on/off threshold.
• Supports two switched viewing heads.
• Two configurable files for remote selection.
• Scalable mA output.
• Modbus RS422 communication for use with FlameToolsPC or FlameTools-HMI/U supports 64 loops.

Download PDF Brochure

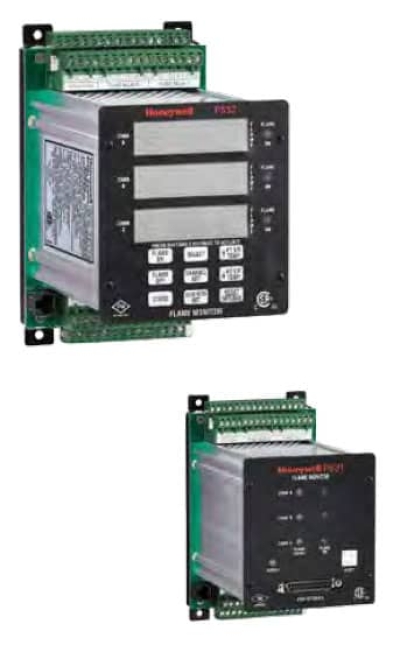

Monitor three viewing heads simultaneously.

• P532 includes a front panel display with large, bright, three color alphanumeric dot matrix displays with LEDs.
• The P531 + P532UI detachable user interface reduces cost when multiple units are required.
• Ability to monitor UV and IR separately from one S550BE viewing head.
• Automatic set-up functionality (auto gain, auto sequence, and auto filter).
• Marginal alarm relays can be configured to provide a secondary indication if flame count drops below set value.
• Modbus RS422 communication for use with FlameToolsPC or FlameTools-HMI/U supports 64 loops and 32 loops, respectively

Download PDF Brochure

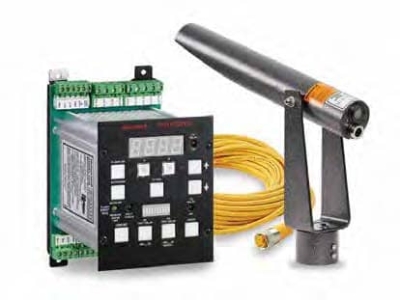

Reliable flame monitoring in the toughest environments.

• Not affected by the sun which allows viewing head to be located anywhere around the flare stack.
• Easy to set up with multiple LEDs and pushbuttons.
• Lightweight and low power consumption.
• No moving parts ensures reliability.
• Easy installation and service with no plant shut down or flare interruption required.
• S256BE ground mounted viewing head has a 1000 ft. line of sight range with 40 ft. diameter target (at 1,000 ft.).
• P222 signal processor can be remotely mounted.

Download PDF Brochure
