SAFE Fire Detection

SAFE Fire Detection

Early Warning Fire Detection, Linear Heat Detection Wire and Water Leak Detection Wire

Safe Fire Detection is the innovator in providing new state of the art detection products helping protect companies around the world. Safe Fire Detection has introduced innovations in linear heat, water leak and aspirating and flame detection. Now Safe is moving forward by soon offering even more innovative products to safeguard your facility.

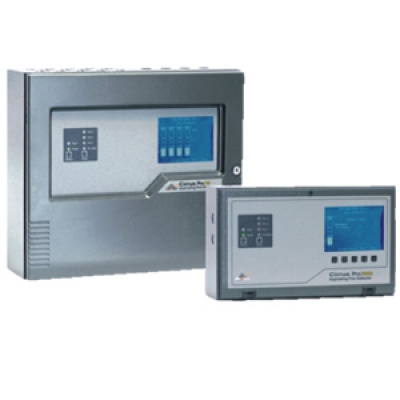

ProPointPlus Early Warning Aspirating Fire Detector

ProPointPlus offers a versatile fire detection solution with up to four separate detectors in one aspirator enclosure, each identifiable and configurable. The system supports optical and optical/CO detectors, features advanced algorithms to reduce false alarms, and is easy to install and configure with a user-friendly LCD display, making it adaptable for various applications.

  • 1 - 4 Individual detectors per aspirator(providing up to 4
    separately identifiable areas)
  • High performance optical ‘Scatter Chamber Detectors’
    (SCD)
  • Multiple language, multi-function LCD display
  • Simple install and commission process generally without
    the need for a laptop connection
  • Built-In algorithm to reduce unwanted alarms
  • Airflow monitoring per pipe



    Download PDF Brochure

ProPointPlus Early Warning Aspirating Fire Detector

Hybrid Very Early Warning Aspirating Fire Detector

There are two main types of aspirating detector technology: Cloud Chamber Detection (CCD) for optically invisible fire particulate and Optical Detection for visible smoke. The Cirrus HYBRID detector uniquely combines both technologies, providing a comprehensive early warning system that minimizes false alarms and effectively detects a wide range of fire types.

  • The First and Only “Combined Fire & Smoke” Aspirating Detector
  • Unique “Cloud Chamber Detection” (CCD) - Primary Detection Technology
  • Optical “Scattering Chamber Detectors” (SCD) - Secondary Detection Technology
  • Independent and integrated intelligent alarm signal decision making
  • The largest sensitivity range of any aspirating detector 0%obs/m - 20%obs/m
  • HYBRID “Smart Signal” to verify alarms and discriminate false alarms
  • 7” full color multi-function touchscreen LCD Display
  • Live Camera Stream from up to 6 IP color cameras
  • Built-In Troubleshooting Videos



     Download PDF Brochure

Hybrid Very Early Warning Aspirating Fire Detector

ProLocator "Fire Sniffer" Portable CCD Hybrid Air Sampling Detector

Early warning fire detection is important, but how do you find the source of the alarm? The ProLocator Fire Sniffer is the world's ONLY portable CCD early warning fire detector that allows you to "sniff" out the source of the fire or pre-fire event. The ProLocator Fire Sniffer uses "Cloud Chamber Detection" (CCD) Technology that detects particles of combustion. Similar in operation to a Gieger Counter, the ProLocator Fire Sniffer directs you to the source of the fire with audible and visual indicators. Identifying the source of your early warning fire alarm has never been easier.

  • Sensitivity Range: 0.0000 to 100% obs./ft.
  • Power: Battery operated with charger
  • Dimensions (WxHxD): 12" x 11" x 4.25"
  • Weight: 12 lbs.
  • Unit Operating Temperature: 32°-130°F (0-54°C)
  • Location Indicator: LED and audible
  • Other Indicators: Supply Health and Fault



Download PDF Brochure

ProLocator "Fire Sniffer" Portable CCD Hybrid Air Sampling Detector

SafeCable Linear Heat Detection Wire

SAFE Fire Detection, Inc. SafeCable Linear Heat Detection Wire offers longer operating distances and greater ease of installation over competitive linear heat detection products. It can be used with any certified fire alarm panel and SafeCable offers you savings on both the cost of the wire and the cost of installation. SafeCable is available in a variety of alarm temperatures and it carries full FM, UL and ULC certifications, among others. It's simple; a better linear heat detection wire at a better price.

SafeCable is a real breakthrough in linear heat detection wire. With a dramatically lower resistance/ft. over competitive products, SafeCable allows for runs of up to 10,000' in a single zone and the more flexible, yet rugged construction of SafeCable makes installation easier and less time consuming. SafeCable is certified by UL, ULC and FM for use with ANY FIRE DETECTION PANEL.

  • Lower cost
  • Up to 10,000 linear feet of SafeCable™ per zone, .05 ohms/ft resistance per twisted pair wire (Lower than any other wire)
  • Compatible with ALL Fire Alarm Control/Releasing Panels (Maximum length determined by resistance allowed by panel)
  • Multiple alarm temperatures: 155°F, 172°F, 190°F, 220°F, 280°F, 360°F
  • Distance locating available
  • Can detect anywhere along the entire length of wire
  • Multiple alarm temperatures can be mixed on the same zone
  • Total zone length replacement unnecessary after alarm
  • Longer standard spool lengths means less splicing
  • Custom lengths available
  • Corrosion and UV resistant

A full assortment of mounting and splicing hardware available



Download PDF Brochure

SafeCable Linear Heat Detection Wire

ProH2O Water Leak Detection

What is Linear Water Leak Detection?

The ProH2O Module linear water leak detector operates using time-domain reflectrometry. A short pulse (less than 1 millionth of a second) is sent down the cable. When a leak is detected, a return pulse is generated (effectively the pulse sent out by the controller “bounces” off the leak) to send back an alarm.

The new ProH2O "Plug and Play" design comes in modular and distance locating versions. The cable can be run 100ft/30m max (Module) or 1000ft/300m max (Professional). The cables come in three easy to use “Plug and Twist” lengths, 12 ft (3.5m), 50 ft (15m ) or 100 ft (30 m) just use the combination that best meets your needs. ProH2O leak detection cable can be run on the floor utilizing our adhesive backed easy to use “Quick Clips” near sensitive equipment, in low areas or anywhere water may enter the environment. It can also be attached directly to sprinkler or process piping with our double loop ties to monitor for leaky pipes. The ProH2O Water Leak Detector Module operates on 12 VDC or 24VDC and has both alarm and fault connections to provide an easy interface to your Build System, Fire Alarm or Security System.

  • Addressable or Conventional
  • Modular or Distance Locating
  • Self-Restoring
  • Up to 100 ft. per detector (Modular)
  • Up to 1,000 ft. per detector (Professional)
  • Can detect a leak anywhere along its entire length



Download PDF Brochure

ProH2O Water Leak Detection
